Billiard Car
Capstone Project I in National Taiwan University.

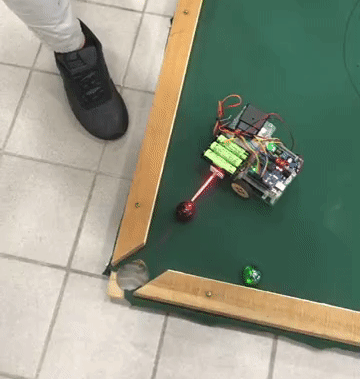

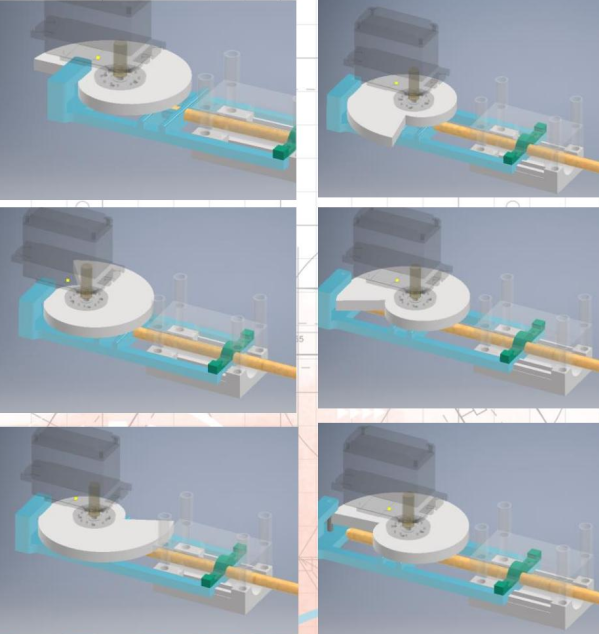

This project was done by 4 members, aiming to shoot as many balls as possible under a time constraint. I was responsible for the mechanical design of the billiard car. I also simulated the shooter mechanism and validated simulation results through real hardware testing. The cam mechanism for the shooter and a simple demo for the billiard function are shown below.
For more technical details, the complete project report translated from Traditional Chinese is available below.
